Waterproof IP65 Fixed P6 LED Display Billboard

China Waterproof IP65 Fixed P6 LED Display Billboard supplier
Waterproof IP65 Fixed P6 LED Display Billboard supplier Waterproof IP65 Fixed P6 LED Display Billboard supplier Waterproof IP65 Fixed P6 LED Display Billboard supplier Waterproof IP65 Fixed P6 LED Display Billboard supplier Waterproof IP65 Fixed P6 LED Display Billboard supplier

Large Image :  Waterproof IP65 Fixed P6 LED Display Billboard

Product Details:

Place of Origin: China
Brand Name: Vegoo
Certification: CE
Model Number: VG-P6-5

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 10-20 days
Payment Terms: T/T
Supply Ability: 5000 Sqm/month
Contact Now
Detailed Product Description
LED Specification: SMD3535 Pixel Distance: 6mm
Moudle Size: 192x192mm Pixel Density: 27777dots
High Light:

IP65 outdoor led display module

,

P6 rgb smd led module

P6 Outdoor Waterproof Full color Fixed LED Display Board /Outdoor LED Advertising Screen Price


Product Feature:

1.Environmental adaptability, outdoor all-weather work
The module is fully sealed design, the module protection class reaches IP68; Cabinet protection class IP65 (front);
Super anti - UV design;
Whether it is in the strong corridors or strong sun in the desert, can be durable use;
2.A number of measures to ensure uniform brightness
The choice of LED lights and chips have strict quality control, and can be equipped with bright color correction to ensure that the product brightness, color uniformity, to show you the perfect picture.
3.Display brightness adjustable
According to changes in ambient light to adjust the brightness of the display (600-8000nit), to ensure that the human eye best viewing comfort and display while saving energy and environmental protection, greatly reducing your operating costs.
4.Excellent display
Horizontal viewing angle of 150 °, the effective viewing range of advertising to expand, watching better;
High refresh rate (≥1000Hz), high gray (14bits), high contrast (3000: 1), the display is delicate and soft.

Type
Parameter name
p6 outdoor LED module parameter





Module constitute
Pixel structure
Table three LED
LED specification
SMD3535
Pixel composing
1R1G1B
Pixel distance
6mm
Module resolution
32x32dots
Moudle size
192x192mm
Pixel density
27777dots
Peak power consumption
27.5w
Moudle weight
0.389kg

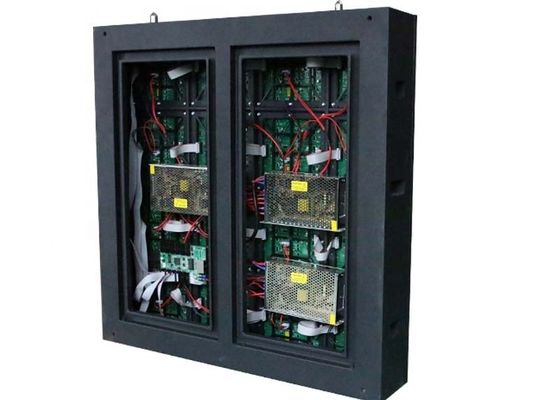

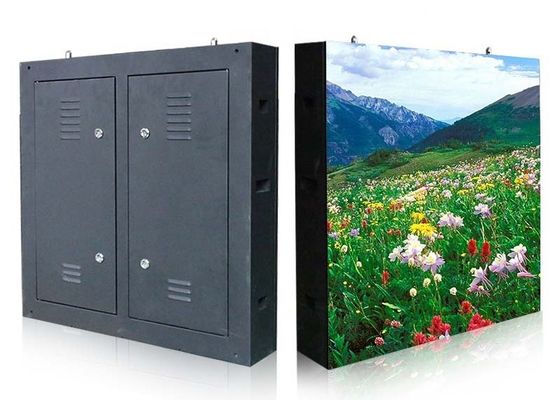

Cabinet parameter
Cabinet type
Waterproof cabinet(IP65)
Cabinet dimension
Customization
Cabinet resolution
Customization
Cabinet area
Customization




Optical parameter
White balance brightness
6500cd/m2
Best visual distance
>6m
Horizontal viewing angle
140
Vertical viewing angle
120
Luminance uniformity
>95%
Contrast
3000:1


Electrical parameter
Maximum power
746w/m
Average power
224w/m
Input voltage
AC220V(50HZ)
Output voltage
DC5V



Processing performance/
Operation parameter
Drive mode
1/8scan
Frame frequency
60Hz
Refresh rate
>1920Hz
Control method
Synchronous
Typcial life values
100000hrs
Working environment temperature
-10~60
Working environment humidity
10%~70%



Waterproof IP65 Fixed P6 LED Display Billboard 0

Waterproof IP65 Fixed P6 LED Display Billboard 1

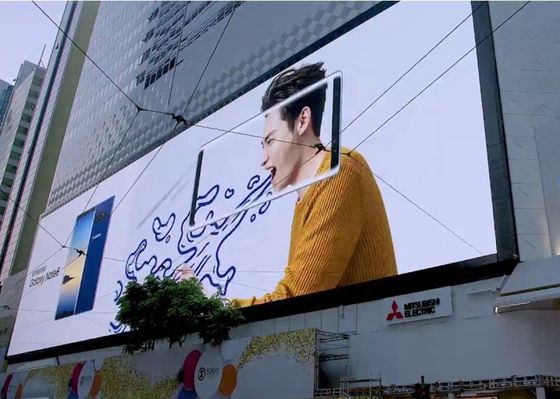

Application

Waterproof IP65 Fixed P6 LED Display Billboard 2



Product Advantage

1.Light ball:
Our company adopts high quality SMD3535 , from raw material processing to encapsulation technology to quality control, we are all more trustworthy than market three without products !
2.Chip:
The solid crystal, gold wire bonding, precision testing of the leading LED packaging technology, equipping with advanced automatic production line and production equipment, the international leading quality inspection and reliability test equipment, guaranteeing the effect of chip quality LED display screen refresh rate is higher.
3.Border:
From details to ensure product quality.The frame thickness is 0.5mm above the market, which is more durable and durable.Surface level not to drop paint, work fine and more beautiful.
4.Factory strength:
Our company focus on full color LED display screen and LED technology industry production, sales and service, our company has the industry advanced, complete automatic rapid assembly lines, production capacity output high on industry.Worldwide commitment and fulfillment of user professional services and guidance.
5.High gray high brush:
The sun is still bright and bright picture, the display is natural and true, each module has been through the point brightness and chroma correction, brightness and color uniformity.
High waterproof and dustproof rating (before IP65), strong anti-seismic ability to adapt to extreme weather
Flatness: the whole screen: ≤ ± 1mm patchwork between the module: ≤ 1mm
Viewing distance: 8-200m, the display is clearly visible
Image adjustment: Contrast / tone adjustment / single mode group brightness adjustment

Our Service

1.Pre-sales service:
Our team design and make solutions based on different requirements from different customers, what you think is what we can do.
2.After-sales services:
1). We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2). We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3). We provide professional engineer one-to-one to keep fastly reply.

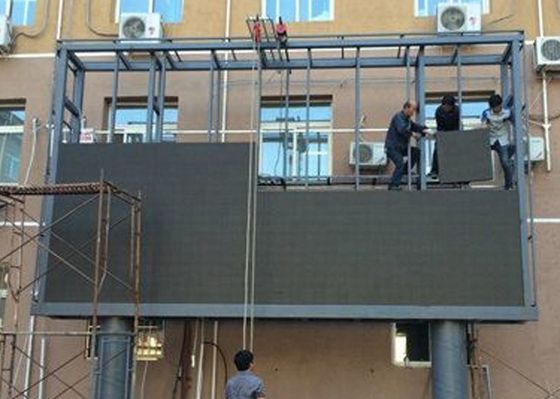

3.Installation Service:
1). We provide detailed CAD drawing to customer for preparing metal structure.
2). We could dispatch our engineer to your place , guide installation and free training.
3). Special designs have special solutions; we will make perfect solutions to satisfy all customers' requirements.
