Outdoor P6.67mm 5500cd/㎡ Digital LED Display Video Screen

China Outdoor P6.67mm 5500cd/㎡ Digital LED Display Video Screen supplier
Outdoor P6.67mm 5500cd/㎡ Digital LED Display Video Screen supplier Outdoor P6.67mm 5500cd/㎡ Digital LED Display Video Screen supplier Outdoor P6.67mm 5500cd/㎡ Digital LED Display Video Screen supplier Outdoor P6.67mm 5500cd/㎡ Digital LED Display Video Screen supplier Outdoor P6.67mm 5500cd/㎡ Digital LED Display Video Screen supplier Outdoor P6.67mm 5500cd/㎡ Digital LED Display Video Screen supplier Outdoor P6.67mm 5500cd/㎡ Digital LED Display Video Screen supplier

Large Image :  Outdoor P6.67mm 5500cd/㎡ Digital LED Display Video Screen

Product Details:

Place of Origin: China
Brand Name: Vegoo
Certification: CE
Model Number: VG-P6.67-DH

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Price: $580
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 10-20 days
Payment Terms: T/T
Supply Ability: 5000sqm/month
Contact Now
Detailed Product Description
Pixel Pitch: 6.67mm Moduel Size(L×W)mm: 320mm×160mm
Cabinet Weight: 10.5kg Brightness: 5500cd/㎡
High Light:

5500cd/㎡ display led panel

,

P6.67mm advertising led panel

Excellent Quality Waterproof Outdoor LED P6.67mm Digital LED Display Video Screen/Panel For Tourist Spot Advertising



Product advantages:

1.RGB deep gray processing to show any color.

2.Support point correction function, ensure the consistency of the color and the brightness in the process of use.

3.Inner fixed reinforcement plate, tensile and shockproof, auto heat dissipation, make the operating life 2 years.

4.With the protection rating of IP65, face any bad weather.

5.With the professional aviation plug as the connectors ensure the qualit and safety.

6.With the high quality raw material, mature process and scale production, the quality is ensured.



P6.67 Outdoor Full color LED Display Specification
NO: Product Name Specification
1 Pixel Pitch 6.67mm
2 Pixel Configuration 1R1G1B/SMD3535
3 Density 22,545 pixel/m2
4 Moduel Size(L×W)mm 320mm×160mm
5 Cabinet Size(L×W×H)mm 640mm×640mm×90mm
6 Module Resolution 48×24
7 Cabinet Resolution 96×96
8 Driving Method 1/6 Scan
9 Driving IC MBI5124
10 Brightness 5500cd/㎡
11 Contrast 6000 :1
12 Brightness Adjustment Auto and Manual
13 Power Consumption Max Power:<650W
14 Average power: <325W
15 Cabinet Weight 10.5kg
16 Color Temperature 2000K—9500K
17 Horizontal Viewing Angle 140º
18 Vertical Viewing Angle 140º
19 Signal Processing 16bit
20 Grey Processing 1024×1024×1024
16834×16834×16834
21 Control Distance cable100m,Multimode500m,Single mode 2km
22 Frame Frequency 65 Hz
23 Refresh Rate >1920Hz
24 Control Mode Synchronous/Asynchronous
25 The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
26 Users can choose the recommended curve or adjust it based on actual situation
27 MTBF >50000 hours
28 Life Span 100,000 Hours
29 Operating Temperature Working : -20 - 65 ℃
30 Storage : -40 - 85 ℃
31 Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
32 Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
33 Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
34 Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
35 Power Supply AC 110-220V/5V60Hz
36 Protection

waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

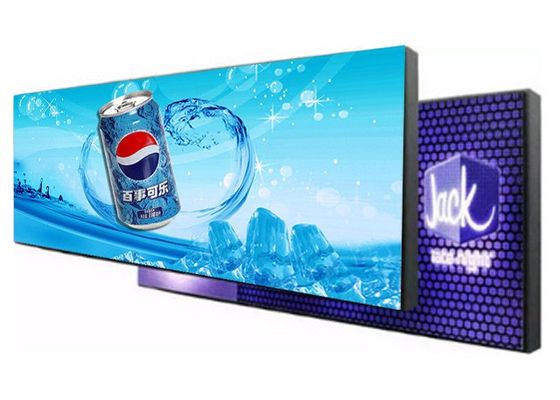

Outdoor P6.67mm 5500cd/㎡ Digital LED Display Video Screen 0

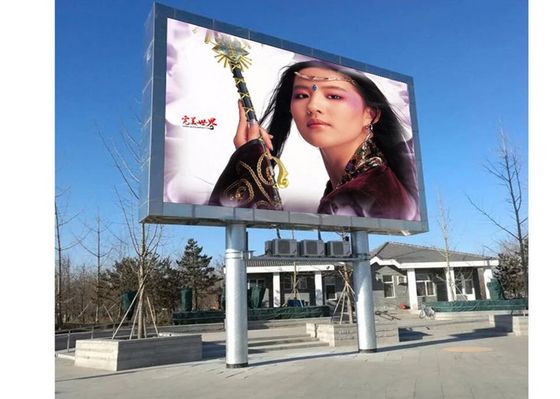

Outdoor P6.67mm 5500cd/㎡ Digital LED Display Video Screen 1

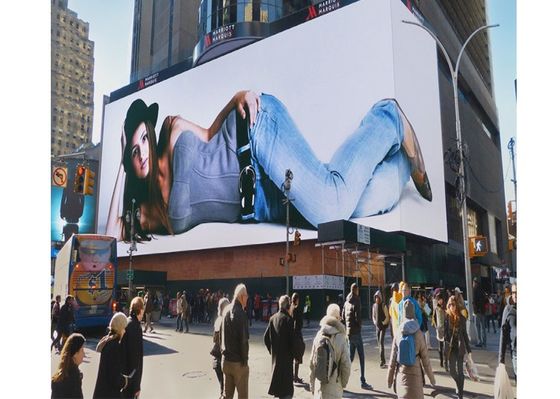

Outdoor P6.67mm 5500cd/㎡ Digital LED Display Video Screen 2



FAQ



1: What is the positioning of your company?

We are a 12-year-old manufacturer focusing on  LED displays (regular and creative).



2: What kind of service do you have?

A. Pre-sale service

1. Reply enquiries in 12 hours.

2. Provide professional solutions based on customer's requirement, can do project design for you.

3. Offer sample and all document as customers required.

4. Other services, such as factory visiting and so on.

B. In-sale service

1. Production progress report.

2. Quality test report for every order.

3. Photos and videos as per customer's requirement.



C. After-sale service

1. Lifetime maintenance and software upgrade.

2. Complaint respond period not exceed 12 hours, maintenance guidance and problem solution supplied in 48 hours.

3. Free technician training.

4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.



3: What does the number mean behind P2, P3.91 etc?

It means each two neighboring pixel distance is 2mm, 3.91mm. The number also means the best viewing distance, P3.91 means the best viewing distance is 3.91m. Besides, In a certain area, if the pixel pitch is smaller, it means the leds/pixels are much more, which can create a higher resolution.



4: How should I choose the suitable screen/dance floor/lighting for my project?

You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?



5: How long is it for my order production?

It depends, but normally 15-20 days.



6: How about the warranty time?

Our products warranty is 2 full year but lifelong maintenance service. For details, our sales consultants will advise you
