Outdoor P10 SMD3535 Full Color LED Video Wall Screens For Advertising Waterproof IP65

Large Image : Outdoor P10 SMD3535 Full Color LED Video Wall Screens For Advertising Waterproof IP65

Product Details:

Place of Origin:	shenzhen
Brand Name:	Vegoo
Certification:	CE
Model Number:	VG-1R1G1B/SMD3535-P10

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	negotiable
Packaging Details:	poly wooden box, flght case , carton
Delivery Time:	7-15 days
Payment Terms:	T/T
Supply Ability:	8000 sqm/month

Contact Now

Detailed Product Description

Moduel Size(L×W)mm:	320mm×160mm	Cabinet Size(L×W×H)mm:	960mm×960mm×130mm
Brightness:	7500CD /㎡	Cabinet Weight:	28kg
Frame Frequency:	65 Hz	Refresh Rate:	>1920Hz
High Light:	outdoor advertising led display screen , outdoor digital signage displays

High Brightness Outdoor P10 SMD3535 Full Color LED video wall screens For Advertising with Waterproof IP65

P10 Outdoor Rental LED Display features:

Curve degrees can be adjusted accordingly to different requests of architectural design;
Other available LED lamp option: Nationstar, Kinglight. Available IC : Sunmoon;
Both front access and rear access are avaiable5. High color uniformity and clear image can bring you a vivid audio visual effect;
Angle regulator connects the cabinets horizontally, 0-15 degree adjustable from frontage and rear, only 10 seconds for per cabinet;
Save 35% power than normal screens;

P10 Outdoor Rental LED Display application:

Our full color LED display are widely used in leisure square, schools,large shopping mall, monitoring centers,shopping malls,High end hotel,trade fair,banks, Churches,entertainment,restaurant,station weiting area, conferance center, Outdoor Signage and advertisement,travel agency and so on .

NO:

Product Name

Specification

Pixel Pitch

10mm

Pixel Configuration

1R1G1B/SMD3535

Density

10,000 pixel/m2

Moduel Size(L×W)mm

320mm×160mm

Cabinet Size(L×W×H)mm

960mm×960mm×130mm

Module Resolution

32×16

Cabinet Resolution

96×96

Driving Method

1/ 4 Scan

Driving IC

FM6124

Brightness

5500cd/㎡

Contrast

6000 :1

Brightness Adjustment

Auto and Manual

Power Consumption

Max Power:＜520W

Average power: ＜250W

Cabinet Weight

28kg

Color Temperature

2000K—9500K

Horizontal Viewing Angle

140º

Vertical Viewing Angle

140º

Signal Processing

16bit

Grey Processing

1024×1024×1024
16834×16834×16834

Control Distance

cable100m,Multimode500m,Single mode 2km

Frame Frequency

65 Hz

Refresh Rate

>1920Hz

Control Mode

Synchronous/Asynchronous

The Opposite Calibration Curve

With Eight Optional Gamma Calibration Curve

Users can choose the recommended curve or adjust it based on actual situation

MTBF

>50000 hours

Life Span

100,000 Hours

Operating Temperature

Working : -20 - 65 ℃

Storage : -40 - 85 ℃

Environment Temperature

-30℃ to 60℃; humidity Rh10% to 95%

Remote Control

Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)

Self-checking Technique

Self-inspection, communication test, power test, temperature monitoring (Be customized)

Operating System Platform

WindowsNT,Windows2000,WindowsXP,Windows7

Power Supply

AC 110-220V/5V60Hz

Protection

waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

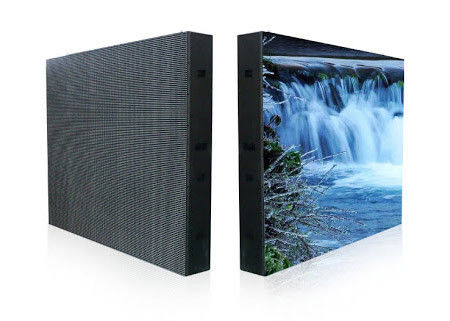

P10 Outdoor Rental LED Display product detail:

Epistar Rental Led Display Screen Backlit TP10 1R1G1B With 640x640mm Cabinet

Package:

Epistar Rental Led Display Screen Backlit TP10 1R1G1B With 640x640mm Cabinet

A.Import machine / SMT Room

B. Our Team :

1).Leader Team	CEO with 12 years led display industry experience, keen market observation ability
2).Engineer Team	Chief Engineer Director with 9 years professional technical experience +3 Engineers speaking English fluently fly all the world
3).Production Team	72 Hours Display Testing Time + 24 Hours Module Testing Time + Serious QC Process
4).After sales team	24 Hours after sales team, Online guide by teamview or on site installation
5).Sales Team	+ 5 years Excellent Domestic Big Government LED Designer + 3 years Expanding International Trade Experience . + All Sales Can Respond your Inquiry within 12 hours

C.Advantage:

1).Price :We can give you the most satisfying price ,because we signed long time VIP Cooperation Contract with raw material suppliers since we step into led industry .Once the market change ,we will flexibly adjust the price and timely notify everyone of you about our update price. YOU WANT = WE DO .First time trial order will let you strongly shake hands with us . We warmly welcome any kind quality inspection process from your team .

2).Quality : We seriously practice 24 hours led module testing time and 72 hours led display aging time .Before shipping and within the warranty time ,our team will track the goods situation to satisfy all your request .

3).Production : Support Any Kind Special Customized Design . YOU NEED =WE DESIGN .We design exactly the same material you mentioned with our team in the sales contract and business negotiation process . We are direct factory ,if your led project time is definitely fixed , with no any change , We will arrange your order firstly to catch up with your time . MEET YOUR TIME = SUPPORT OUR TEAM .
