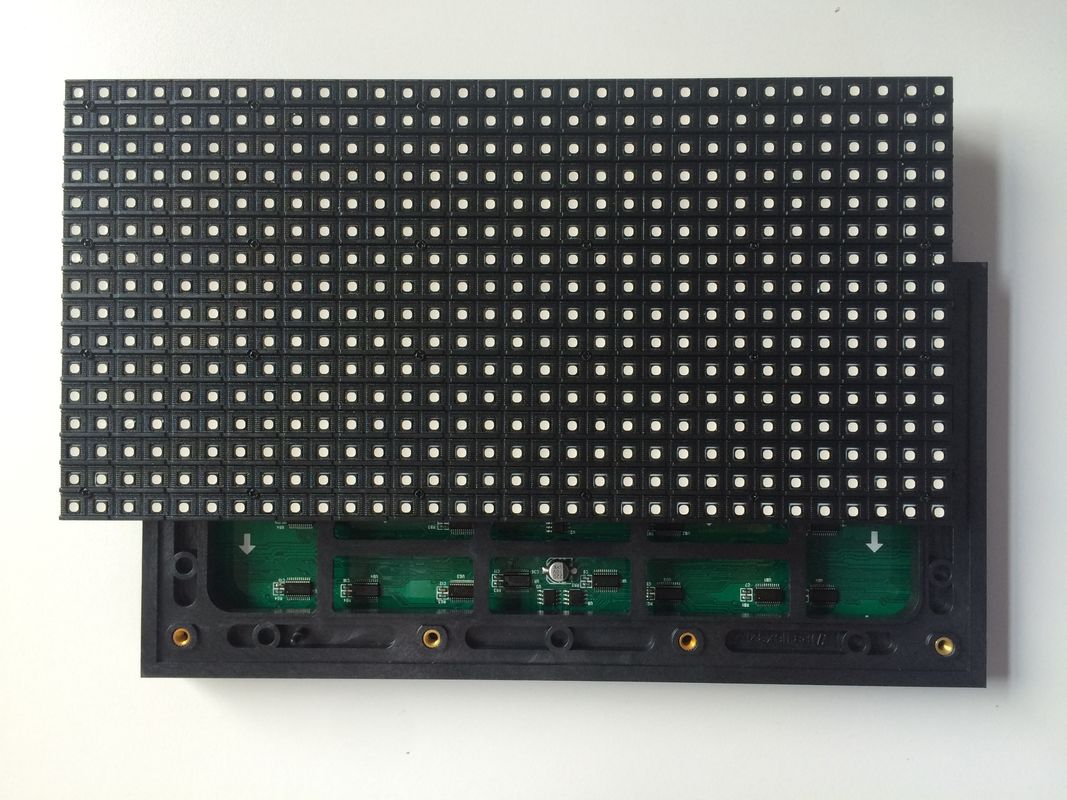

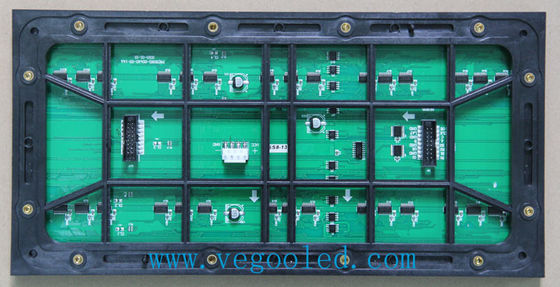

P8 SMD LED Module Outdoor Full Color LED Display High Temperature Pervention

Large Image : P8 SMD LED Module Outdoor Full Color LED Display High Temperature Pervention

Product Details:

Place of Origin:	China
Brand Name:	Vgeoo
Certification:	Ce/ROHS/FCC/
Model Number:	VG-RD P8

Payment & Shipping Terms:

Minimum Order Quantity:	1 Sq.m
Packaging Details:	Plywood case / Flight case / Carton box
Delivery Time:	7 days

Contact Now

Detailed Product Description

Product Name:	P8 Outdoor Full Color LED Display	Pixel Pitch:	8mm
Pixel Configuration:	1R1G1B/SMD3535	Density:	15,625 Pixel/m2
Moduel Size(L×W)mm:	320mm×160mm	Cabinet Size(L×W×H)mm:	960mm×960mm×130mm
Module Resolution:	40×20	Cabinet Resolution:	120×120
Driving IC:	MBI5124 Or ICN 2038S	Brightness:	5500/㎡
Contrast:	1000:1
High Light:	led display module , led screen module

Protection

waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

P8 Outdoor Full color LED Display Specification

Product Name				Specification
Pixel Pitch				8mm
Pixel Configuration				1R1G1B/SMD3535
Density				15,625 pixel/m2
Moduel Size(L×W)mm				320mm×160mm
Cabinet Size(L×W×H)mm				960mm×960mm×130mm
Module Resolution				40×20
Cabinet Resolution				120×120
Driving Method				1/ 5 Scan
Driving IC				MBI5124 or ICN 2038S
Brightness				5500/㎡
Contrast				1000:1
Brightness Adjustment				Auto and Manual
Power Consumption				Max Power:600W
				Average power: ＜250W
Module Weight				0.6kg
Color Temperature				9500K—11500K
Horizontal Viewing Angle				140º
Vertical Viewing Angle				140º
Signal Processing				10 or 14bit
Grey Processing				1024×1024×1024 16834×16834×16834
Control Distance				cable100m,Multimode500m,Single mode 2km
Frame Frequency				65 Hz
Refresh Rate				>1920Hz
Control Mode				Synchronous/Asynchronous
The Opposite Calibration Curve				With Eight Optional Gamma Calibration Curve
				Users can choose the recommended curve or adjust it based on actual situation
MTBF				>50000 hours
Life Span				100,000 Hours
Operating Temperature				Working : -20 - 65 ℃
				Storage : -40 - 85 ℃
Environment Temperature				-30℃ to 60℃; humidity Rh10% to 95%
Remote Control				Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
Self-checking Technique				Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform				WindowsNT,Windows2000,WindowsXP,Windows7
Power Supply				AC 85-264V
Protection				waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

FQA:

What's the pixel pitch for Outdoor LED Display Screen?
Outdoor(p3.91mm/p4.81/p5mm/P6mm/p6.25/p6.67/ P8mm/P10mm/p16mm/p20mm) led display screen;
what is LED display?
LED full color led display is composed of many LEDs. One pixel is made up of three colors of LEDs, colors of LED can be divided into R.G.B.led display screen can show letters,pictures.video, images and so on.
How about your production ability?
We have 10 production lines with all series of automatic production machines.Monthly production ability: 200,000pcs of led modules and 4,000sqm of assembled led displays;"
How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.For designing or further discussion, it is better to contact us with Skype/email /phone, incase of any delays;
