High Definition 3mm Led Screen Indoor Full Color LED Display 800cd/㎡

China High Definition 3mm Led Screen Indoor Full Color LED Display 800cd/㎡ supplier
High Definition 3mm Led Screen Indoor Full Color LED Display 800cd/㎡ supplier High Definition 3mm Led Screen Indoor Full Color LED Display 800cd/㎡ supplier

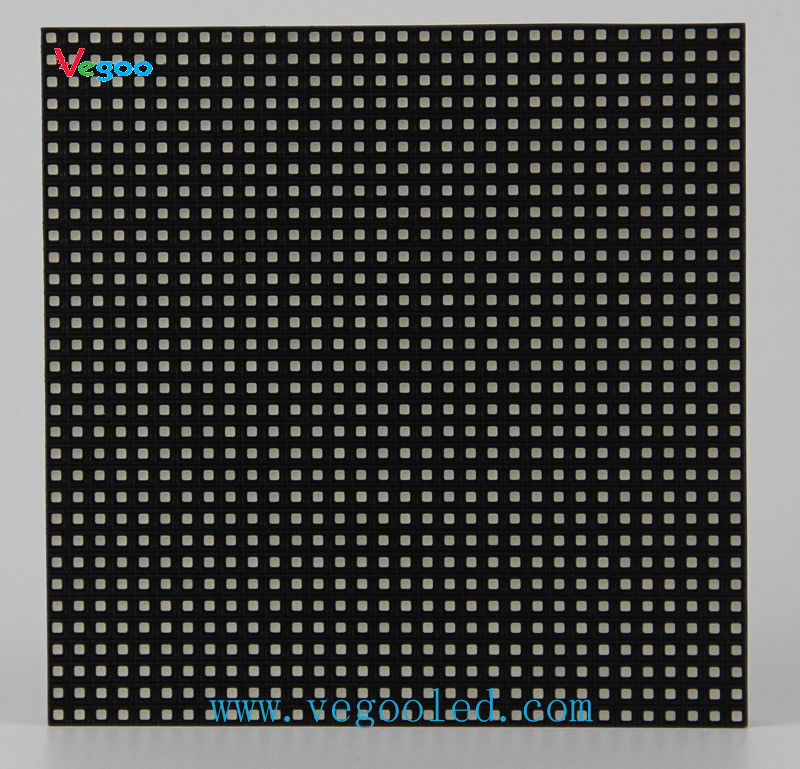

Large Image :  High Definition 3mm Led Screen Indoor Full Color LED Display 800cd/㎡

Product Details:

Place of Origin: China
Brand Name: Vgeoo
Certification: Ce/ROHS/FCC/
Model Number: VG-RD P3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sq.m
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 7 days
Detailed Product Description
Product Name: Indoor Full Color LED Display Pixel Pitch: 3mm
Density: 111,111pixel/m2 Cabinet Size(L×W×H)mm: 576mm×576mm×90mm
Cabinet Resolution: 192×192 Driving IC: MBI5124 Or ICN 2038S
Brightness: 800cd/㎡ Contrast: 1000:1
High Light:

led screen module

,

led video module

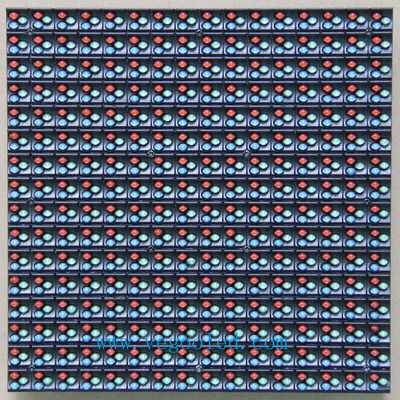

1R1G1B/SMD2121 Black lamp P3 Indoor Full color LED Display





Description:



Long lifespan: Low-voltage power supply with high-efficiency causes little temperature rise, which helps to prolong the life of LED display in stable use.


Perfect Image: No flicker, no brightline or darkline ensures the LED display to take on more perfect image.
Industrialized Production: Patented technology, independent die sinking, precise welding and automatic processing all take the lead in LED industry.







P3 Indoor Full color LED Display Specification



Product Name Specification
Pixel Pitch 3mm
Pixel Configuration 1R1G1B/SMD2121 Black lamp
Density 111,111pixel/m2
Moduel Size(L×W)mm 192mm×192mm
Cabinet Size(L×W×H)mm 576mm×576mm×90mm
Module Resolution 64×64
Cabinet Resolution 192×192
Driving Method 1/32 Scan
Driving IC MBI5124 or ICN 2038S
Brightness 800cd/㎡
Contrast 1000:1
Brightness Adjustment Auto and Manual
Power Consumption Max Power:<800W
Average power: <200W
Module Weight 0.25kg
Color Temperature 9500K—11500K
Horizontal Viewing Angle 140º
Vertical Viewing Angle 140º
Signal Processing 10 or 14bit
Grey Processing 1024×1024×1024
16834×16834×16834
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >1920Hz
Control Mode Synchronous/Asynchronous
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65 ℃
Storage : -40 - 85 ℃
Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
Power Supply AC 110-220V
Protection dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)
