MBI5124 / ICN 2038S Indoor Led Display Panel P3 Led Video Wall 9500K - 11500K

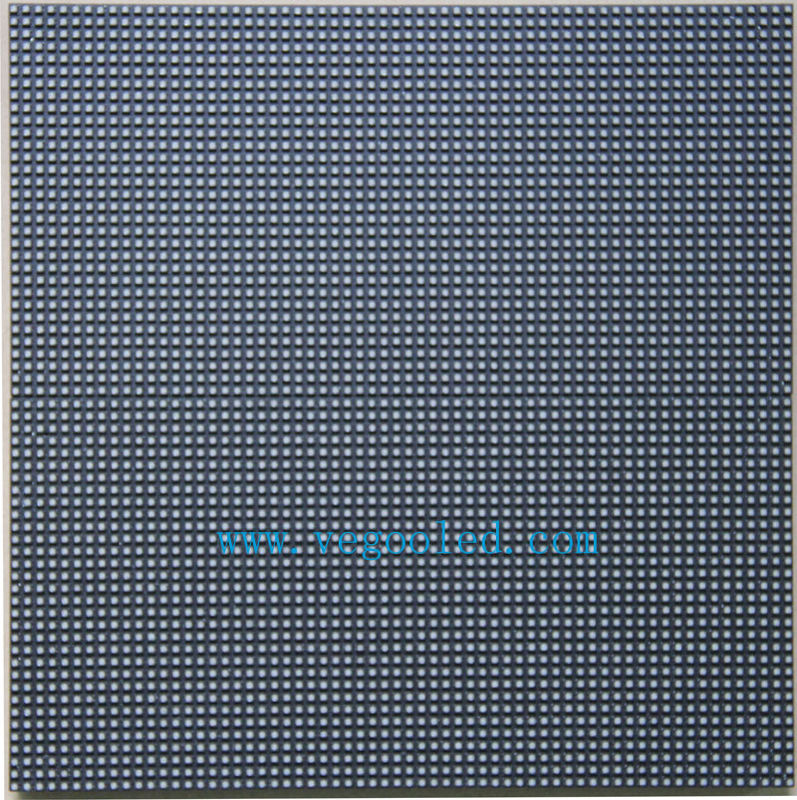

Large Image : MBI5124 / ICN 2038S Indoor Led Display Panel P3 Led Video Wall 9500K - 11500K

Product Details:

Place of Origin:	China
Brand Name:	Vgeoo
Certification:	Ce/ROHS/FCC/
Model Number:	VG-RD P3

Payment & Shipping Terms:

Minimum Order Quantity:	1 Sq.m
Packaging Details:	Plywood case / Flight case / Carton box
Delivery Time:	7 days

Contact Now

Detailed Product Description

Product Name:	Indoor Full Color LED Display	Pixel Pitch:	3mm
Pixel Configuration:	1R1G1B/SMD2121 Black Lamp	Density:	111,111pixel/m2
Moduel Size(L×W)mm:	192mm×192mm	Cabinet Size(L×W×H)mm:	576mm×576mm×90mm
Module Resolution:	64×64	Cabinet Resolution:	192×192
Driving IC:	MBI5124 Or ICN 2038S	Brightness:	800cd/㎡
Contrast:	1000:1
High Light:	led screen module , led video module

MBI5124 or ICN 2038S P3 Indoor Full color LED Display 800cd/㎡

Features:

Perfect for outdoor usage;
High grayscale (16 bits) with perfect visual performance;
DIP technology, high brightness. Keeps the display content visible even if facing the strong sunlight directly;
USES the industry the best outdoor SMD triad waterproof and uv protection technology, makes the screen when use ultra wide Angle of view and better surface smoothness and stability;
Easy installation design, allows for quick and convenient installation;
the optimization of the cooling system, effectively reduce the energy consumption;
PC controlled in real time;
Cabinets of ground and side protection;
High refresh rate by choose Linsn or Novastar control system;
We use black body LED lamp,so the contrast rate is much higher than traditional white body LED lamp.Images on our LED screen looks very sharp;
high brightness;
High quality, producing according to the international standard of CE,FCC, Rohs,ETL;

P3 Indoor Full color LED Display Specification

NO:

Product Name

Specification

Pixel Pitch

3mm

Pixel Configuration

1R1G1B/SMD2121 Black lamp

Density

111,111pixel/m2

Moduel Size(L×W)mm

192mm×192mm

Cabinet Size(L×W×H)mm

576mm×576mm×90mm

Module Resolution

64×64

Cabinet Resolution

192×192

Driving Method

1/32 Scan

Driving IC

MBI5124 or ICN 2038S

Brightness

800cd/㎡

Contrast

1000:1

Brightness Adjustment

Auto and Manual

Power Consumption

Max Power:＜800W

Average power: ＜200W

Module Weight

0.25kg

Color Temperature

9500K—11500K

Horizontal Viewing Angle

140º

Vertical Viewing Angle

140º

Signal Processing

10 or 14bit

Grey Processing

1024×1024×1024
16834×16834×16834

Control Distance

cable100m,Multimode500m,Single mode 2km

Frame Frequency

65 Hz

Refresh Rate

>1920Hz

Control Mode

Synchronous/Asynchronous

The Opposite Calibration Curve

With Eight Optional Gamma Calibration Curve

Users can choose the recommended curve or adjust it based on actual situation

MTBF

>50000 hours

Life Span

100,000 Hours

Operating Temperature

Working : -20 - 65 ℃

Storage : -40 - 85 ℃

Environment Temperature

-30℃ to 60℃; humidity Rh10% to 95%

Remote Control

Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)

Self-checking Technique

Self-inspection, communication test, power test, temperature monitoring (Be customized)

Operating System Platform

WindowsNT,Windows2000,WindowsXP,Windows7

Power Supply

AC 110-220V

Protection

dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)
