Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall

China Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall supplier
Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall supplier Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall supplier Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall supplier Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall supplier Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall supplier Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall supplier Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall supplier Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall supplier

Large Image :  Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall

Product Details:

Place of Origin: shenzhen
Brand Name: Vegoo
Certification: CE
Model Number: VG-1R1G1B/SMD3535-P10

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: negotiable
Packaging Details: poly wooden box, flght case , carton
Delivery Time: 7-15 days
Payment Terms: T/T
Supply Ability: 8000 sqm/month
Contact Now
Detailed Product Description
Moduel Size(L×W)mm: 320mm×160mm Cabinet Size(L×W×H)mm: 960mm×960mm×130mm
Brightness: 6000CD /㎡ Cabinet Weight: 25kg
Pixel Pitch: 5 Mm Refresh Rate: >1920Hz
High Light:

outdoor advertising led display screen

,

outdoor digital signage displays



Product Description



Outdoor p4 p5 p6 p8 p10 led wall waterproof LED module p4 p5 p6 p8 p10 poutdoor rental stage ultra slim led screen for concert

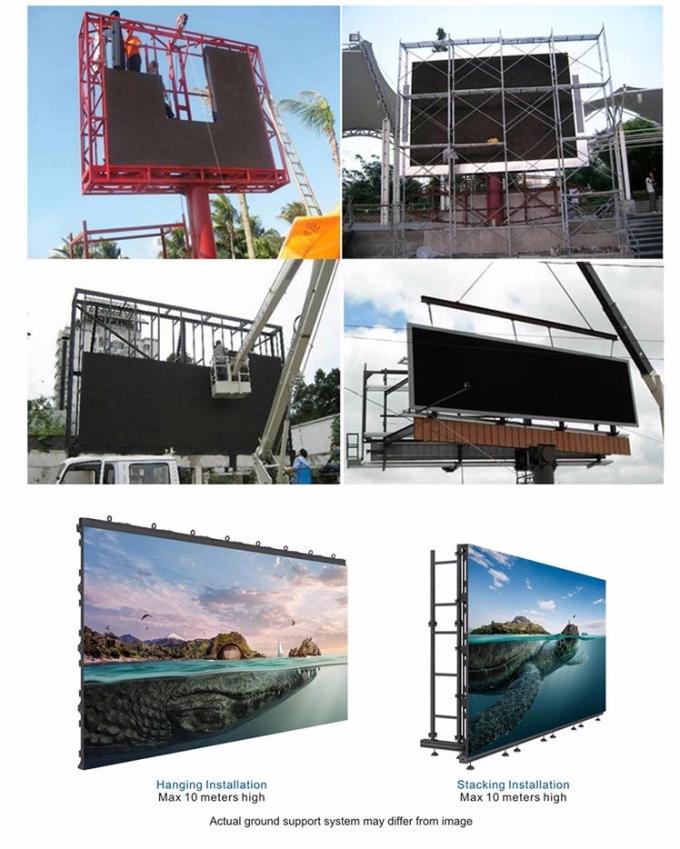

With the light cabinet and good material , installation easily .

Warranty for 3 years . no dad lamp and long time working hours .


NO: Product Name Specification
1 Pixel Pitch 5mm
2 Pixel Configuration 1R1G1B/SMD2727
3 Density 40,000 pixel/m2
4 Moduel Size(L×W)mm 320mm×160mm
5 Cabinet Size(L×W×H)mm 640mm×640mm×130mm
6 Module Resolution 64×32
7 Cabinet Resolution 192×192
8 Driving Method 1/8 Scan
9 Driving IC MBI5124 or ICN 2038S
10 Brightness 6000cd/㎡
11 Contrast 1000:1
12 Brightness Adjustment Auto and Manual
13 Power Consumption Max Power:<750W
14 Average power: <225W
15 Module Weight 0.28kg
16 Color Temperature 9500K—11500K
17 Horizontal Viewing Angle 140º
18 Vertical Viewing Angle 140º
19 Signal Processing 10 or 14bit
20 Grey Processing 1024×1024×1024
16834×16834×16834
21 Control Distance cable100m,Multimode500m,Single mode 2km
22 Frame Frequency 65 Hz
23 Refresh Rate >1920Hz
24 Control Mode Synchronous/Asynchronous
25 The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
26 Users can choose the recommended curve or adjust it based on actual situation
27 MTBF >50000 hours
28 Life Span 100,000 Hours
29 Operating Temperature Working : -20 - 65 ℃
30 Storage : -40 - 85 ℃
31 Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
32 Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
33 Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
34 Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
35 Power Supply AC 85-264V
36 Protection waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

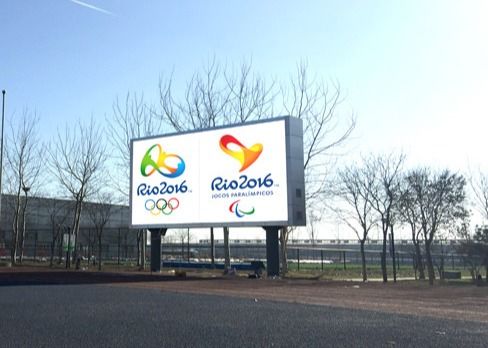

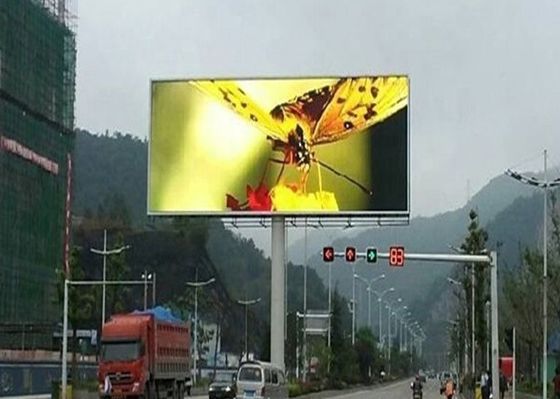

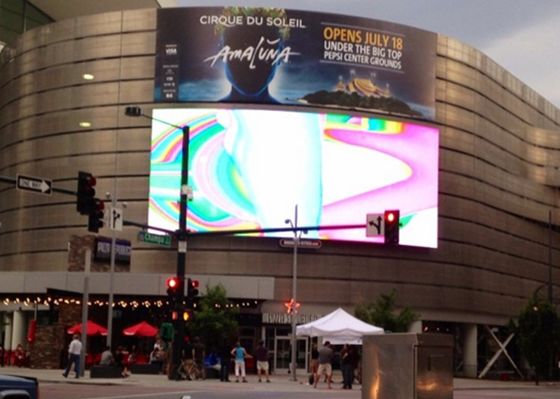

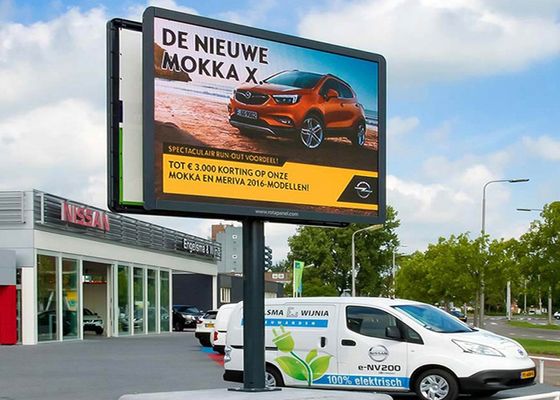

Product Applications

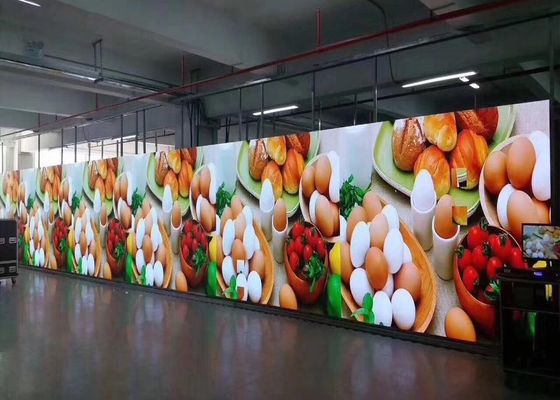

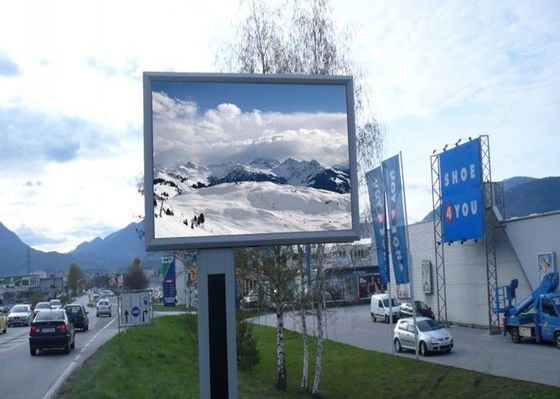

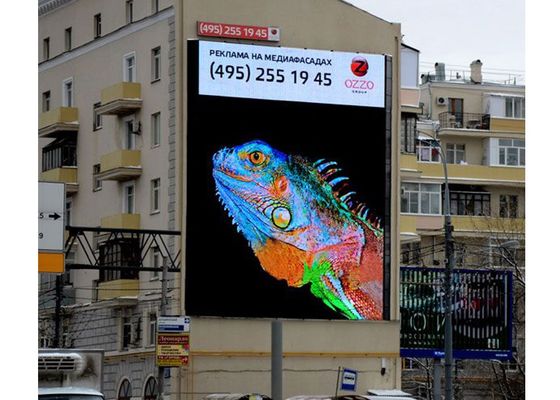

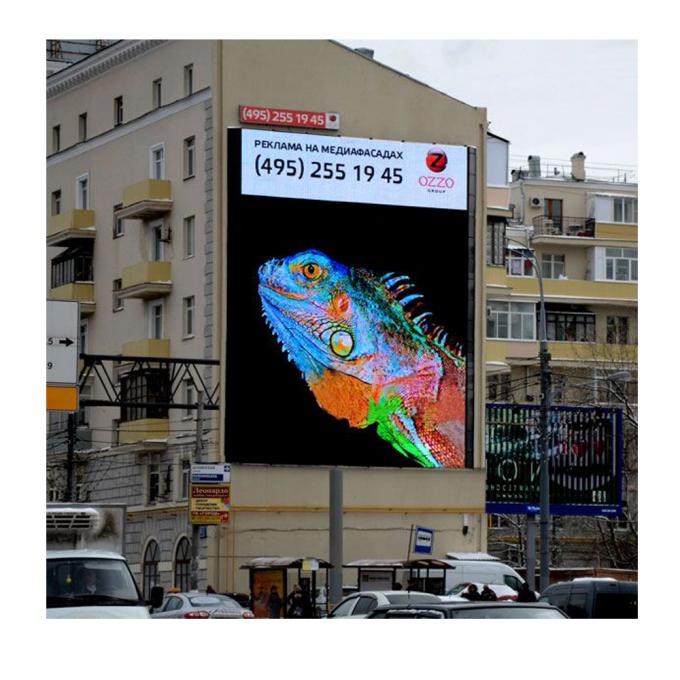

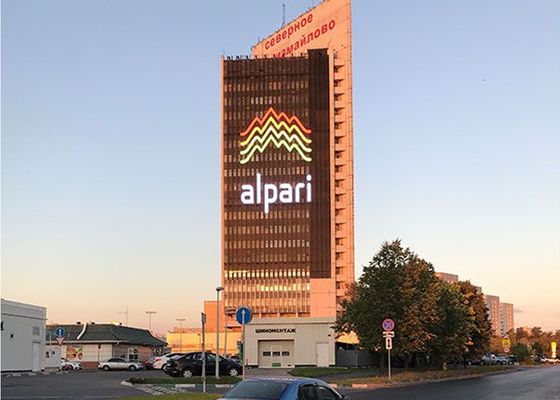

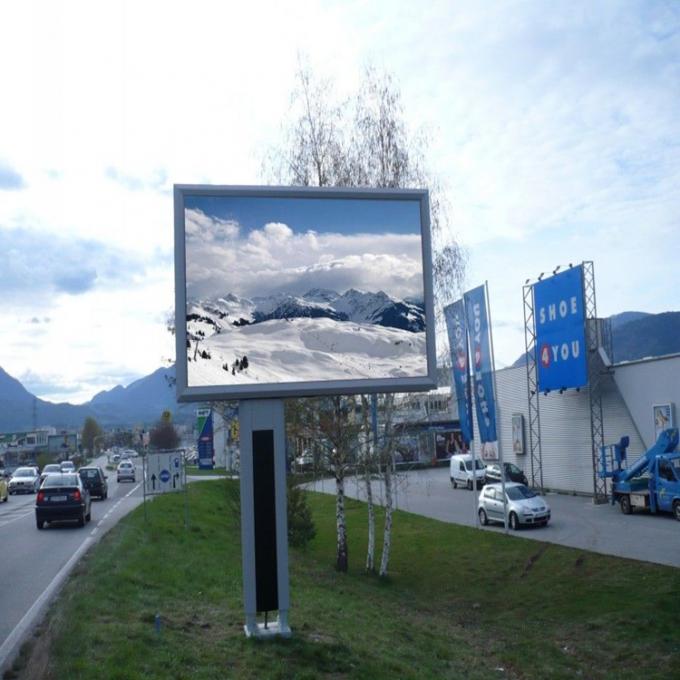

Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall 0

Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall 1

Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall 2

Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall 3

Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall 4

Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall 5

Wateproof Full Color P4 P5 P6 P8 P10 P16 Outdoor Led Display Advertising Led Screen Stage Screen Wall 6



Our Services

1.Reply your inquiry in 24 working hours

2.Customized design is available ,OEM and ODM are welcomed

3.Delivery the goods to our customer all over the world with speed and precision

4.Offer customer the lowest price with high quality led module and led display

5 Warranty time: led module:2years led display:3years



FAQ
Q1.What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the
goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: FOB

Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
